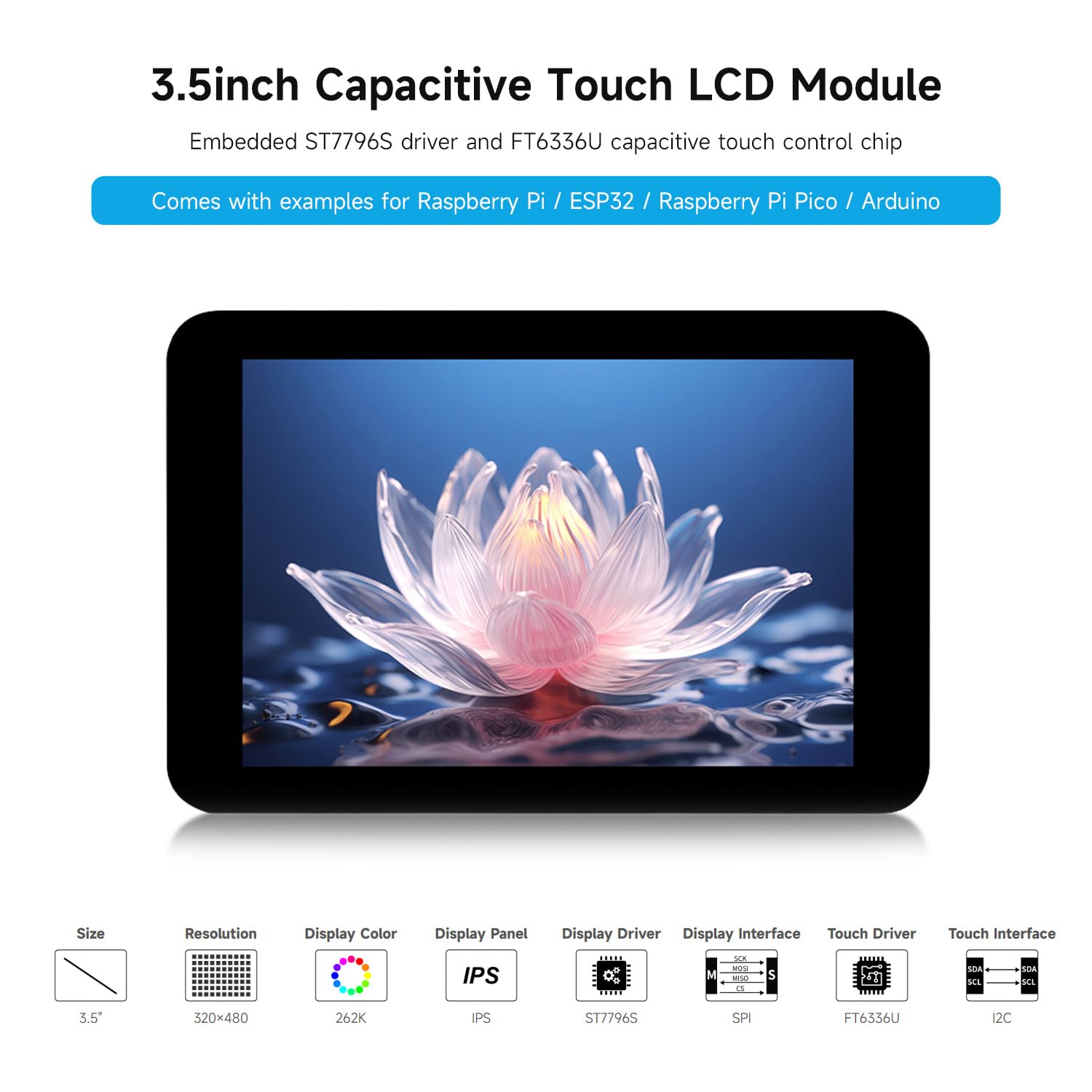

Waveshare 3.5inch Capacitive Touch Display Module, Compatible con Raspberry Pi 5/4B/3B/Zero/Zero W/Zero 2W/Pico /ESP32 / Arduino, Risoluzione 320×480, Display IPS
Product Specification
Marchio: Waveshare
Nome modello: Waveshare
Modello CPU: Raspberry Pi Zero 2 W
Tecnologia di connettività: Ethernet, GPIO, I2C, USB
Componenti inclusi: Slot per schede TF integrato, connettore 15 pin, slot FPC 18PIN

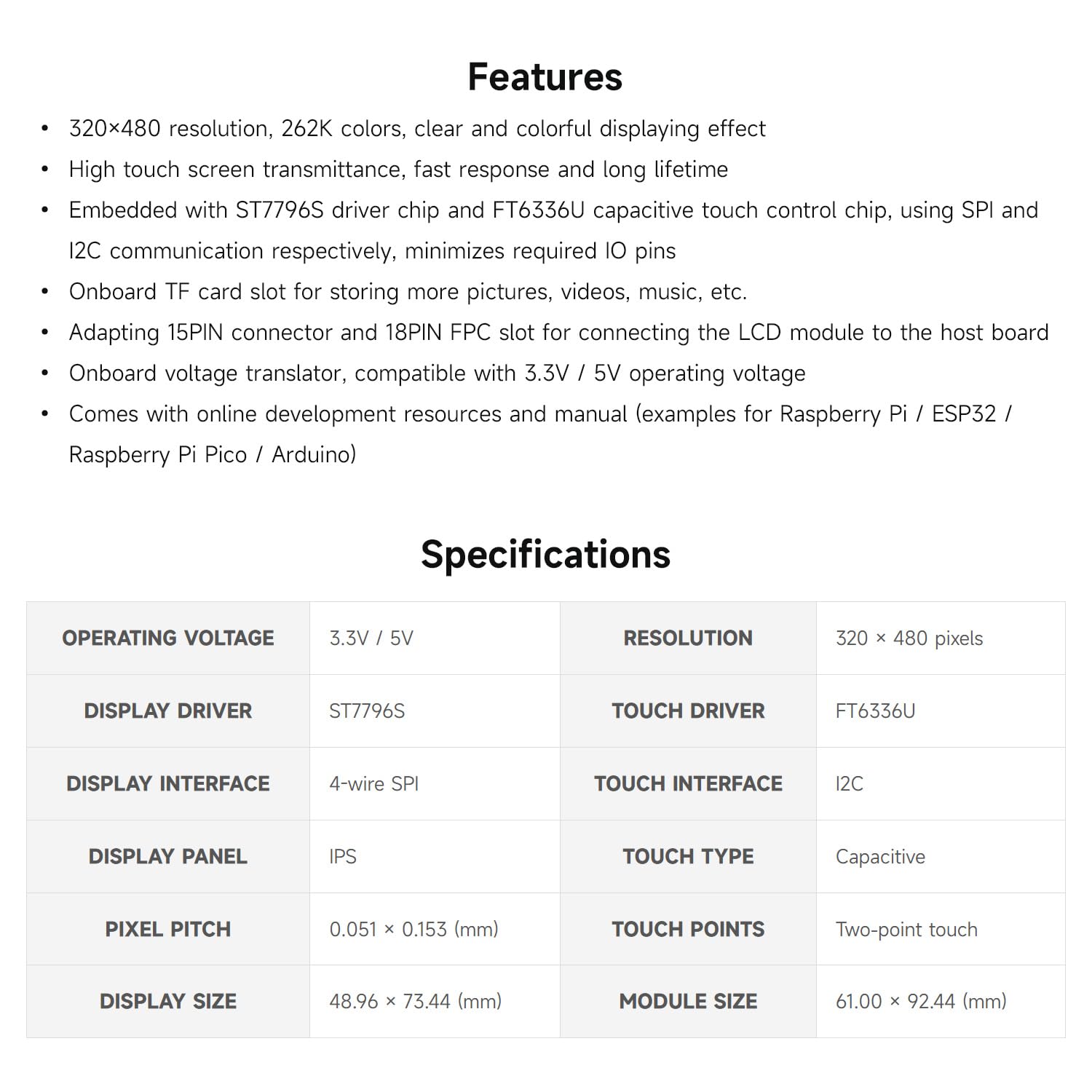

- 320×480 resolution, 262K colors, clear and colorful displaying effect. High touch screen transmittance, fast response and long lifetime

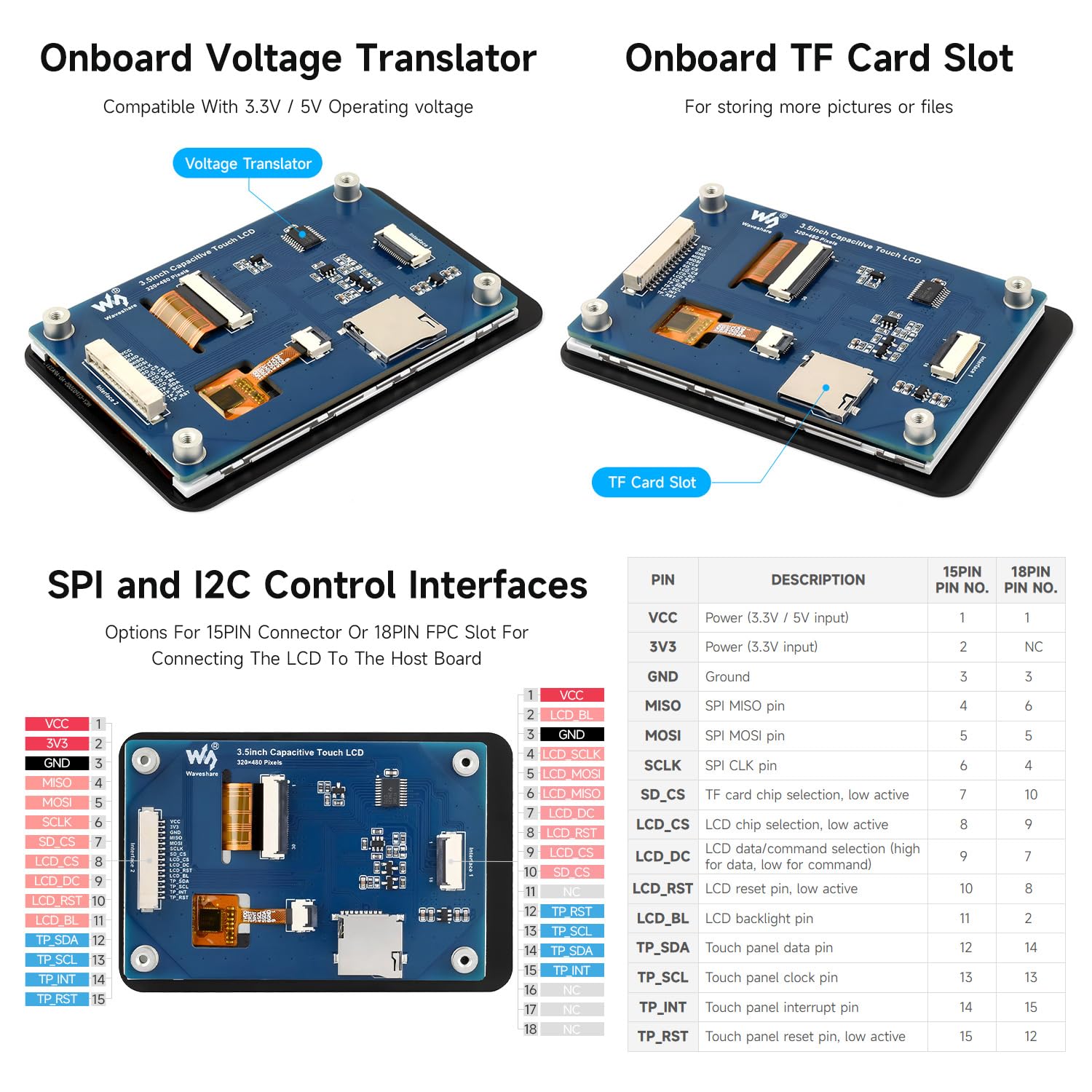

- Embedded with ST7796S driver chip and FT6336U capacitive touch control chip, using SPI and I2C communication respectively, minimizes required IO pins

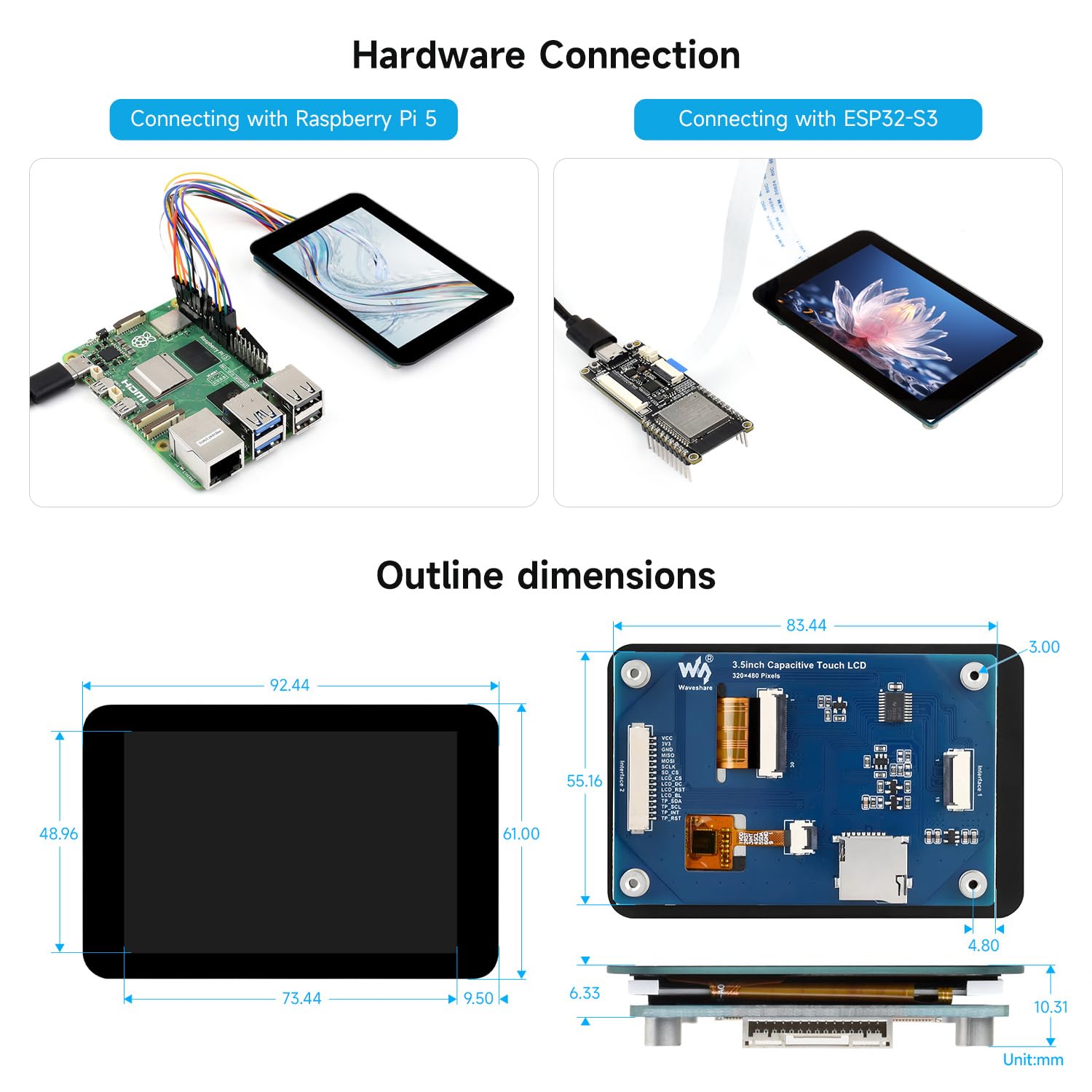

- Onboard TF card slot for storing more pictures, videos, music, etc. Adapting 15PIN connector and 18PIN FPC slot for connecting the LCD module to the host board
- Onboard voltage translator, compatible with 3.3V / 5V operating voltage
- Rich WiKi Resources: We provide official Wiki resources, please contact us for more information.
