LUCKFOX 1.5-inch 65K Color OLED Display Module, 128(H) RGB x 128(V) Resolution OLED Screen, 3.3V/5V, Support 3/4-Wire SPI Interface Communication, Compatible with Raspberry Pi/STM32, etc
Product Specification
Marchio: LUCKFOX
Dimensioni schermo: 1,5 Pollici
Proporzioni: 1:1
Risoluzione massima del display: 128 x 128
Caratteristica speciale: Display OLED e comunicazione SPI a basso consumo

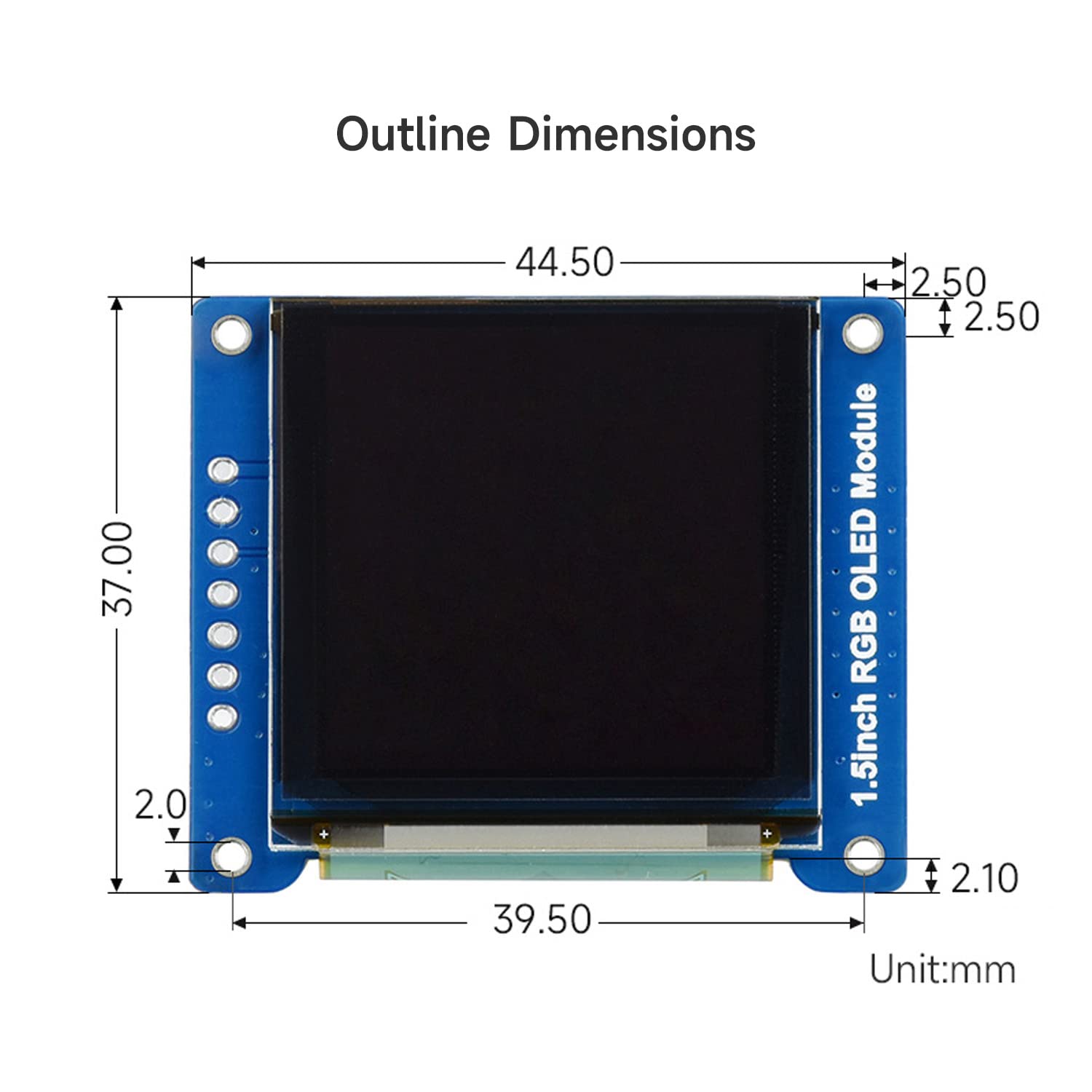

Dimensioni del prodotto: 2P x 45l x 37H mm
Tecnologia dello schermo: OLED
Interfaccia hardware: HDMI

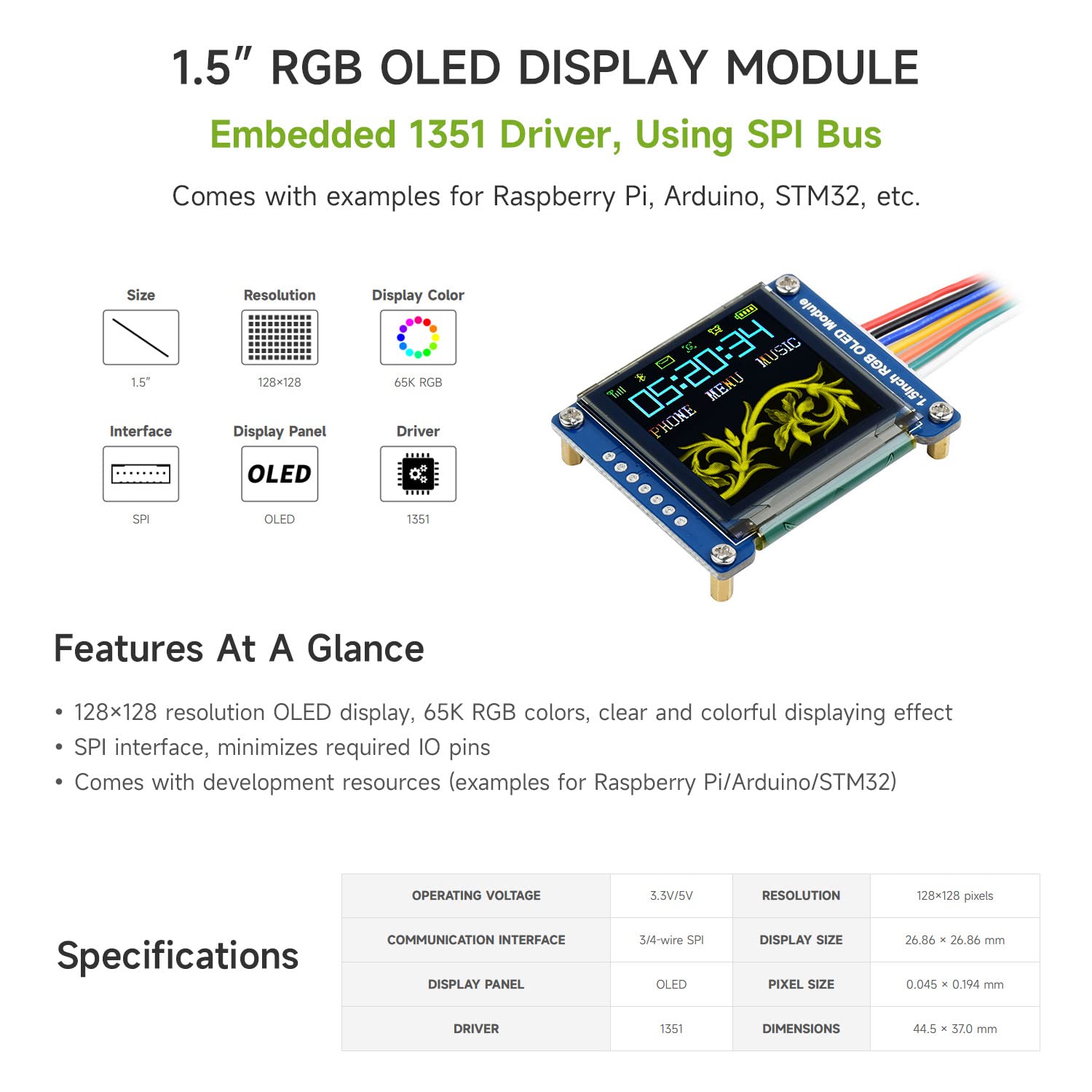

- Display color: 65K color; Resolution: 128 (H) RGB x128 (V); Display size: 26.855 (H) x 26.855 (V) mm
- Working voltage: 3.3V/5V (please ensure that the power supply voltage is consistent with the logic voltage, otherwise it will not work properly)

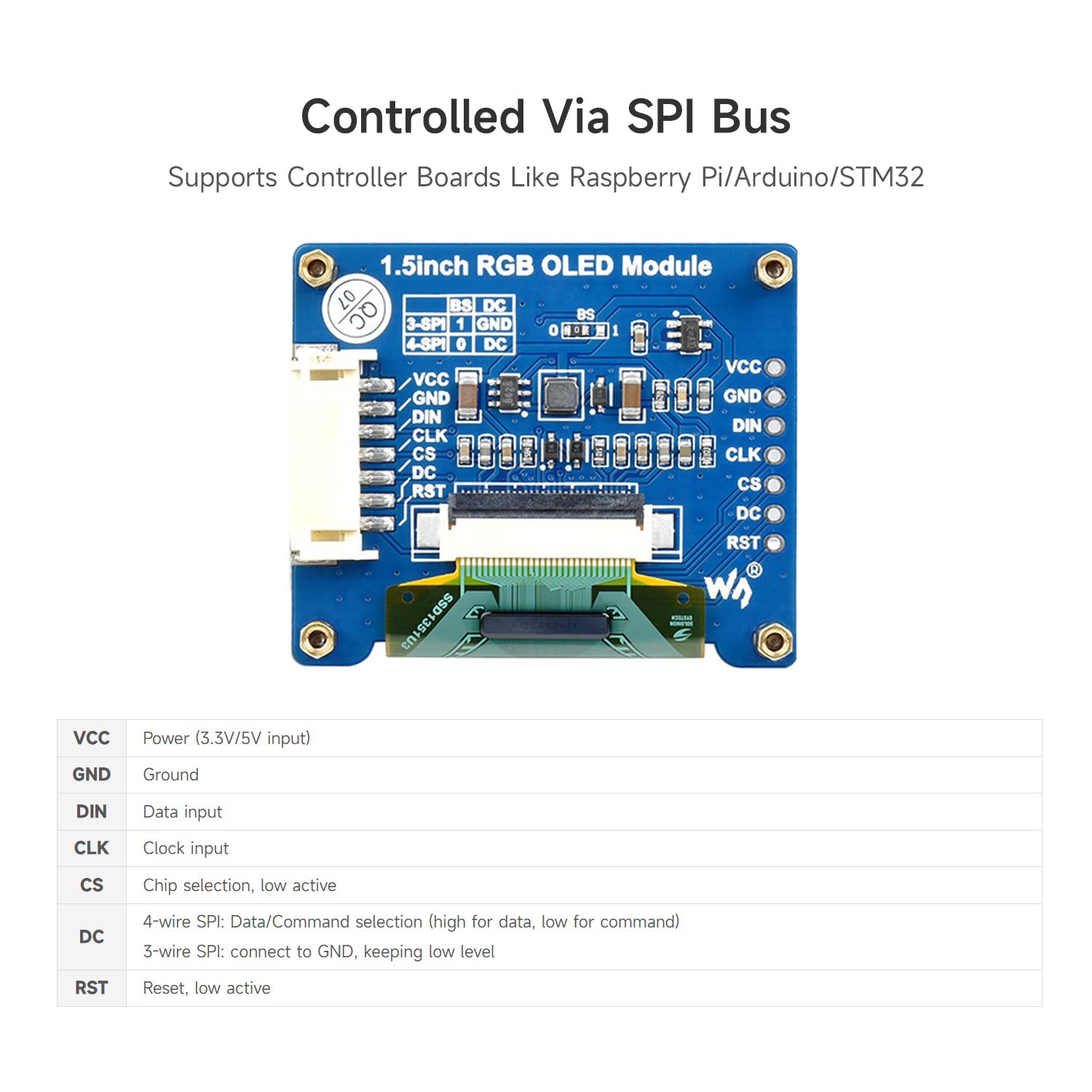

- This module uses 4wire-SPI and 3wire-SPI as communication modes to reduce the area of the module and save IO resources of the controller.
- Note: This module only has SPI interface. Please pay attention when using it

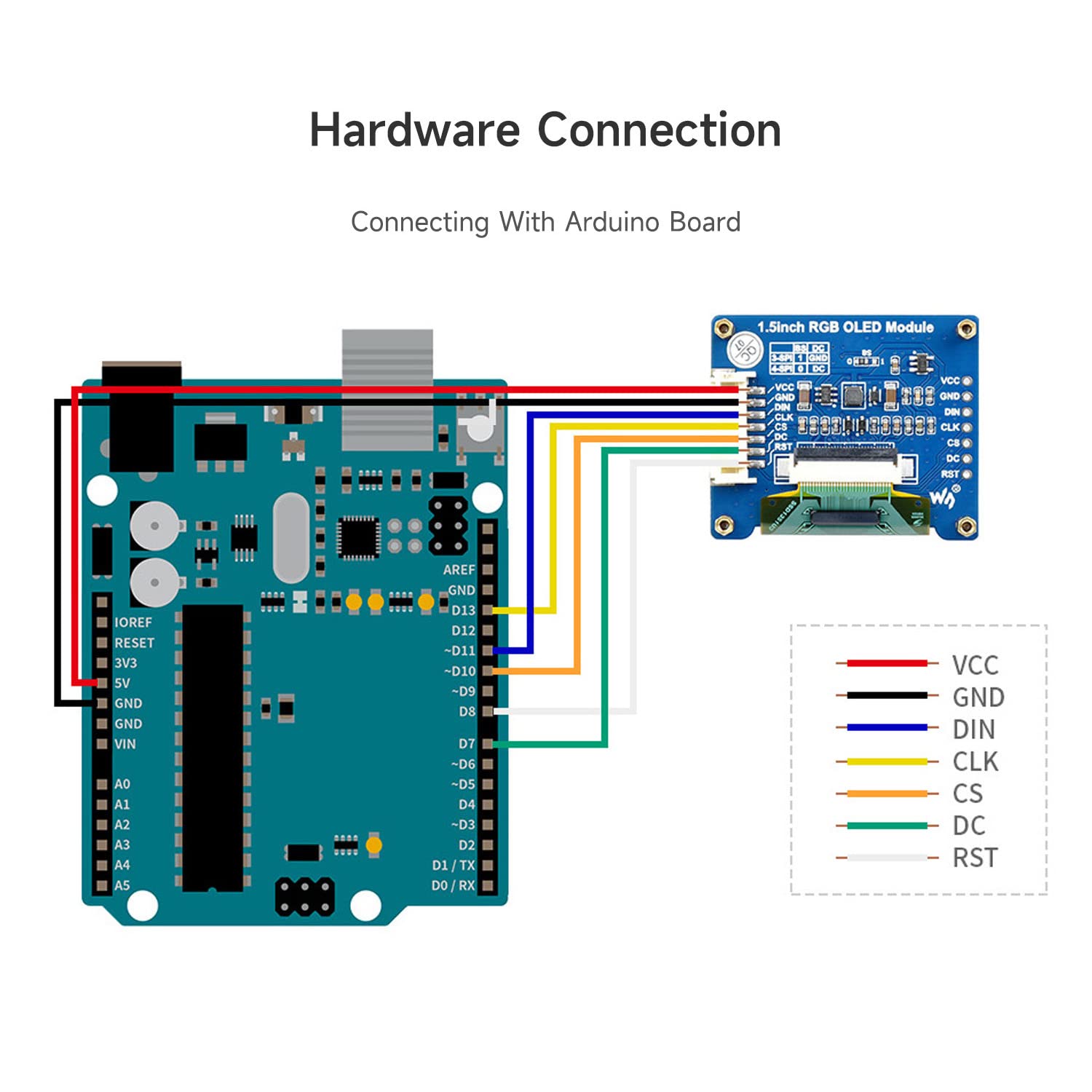

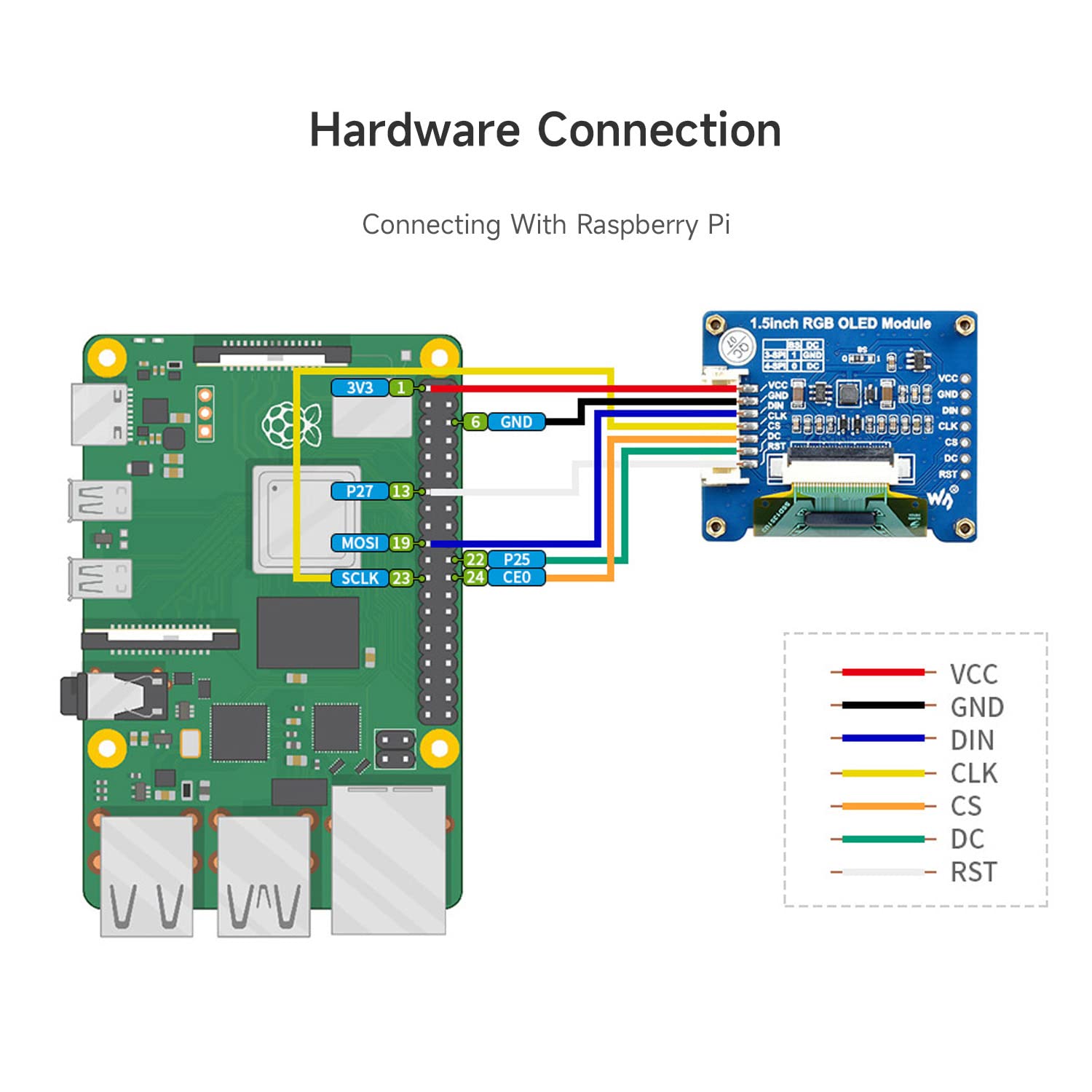

- Provide routines for Raspberry Pi/STM32, etc. Please ask 24-hour customer service for relevant routine data
