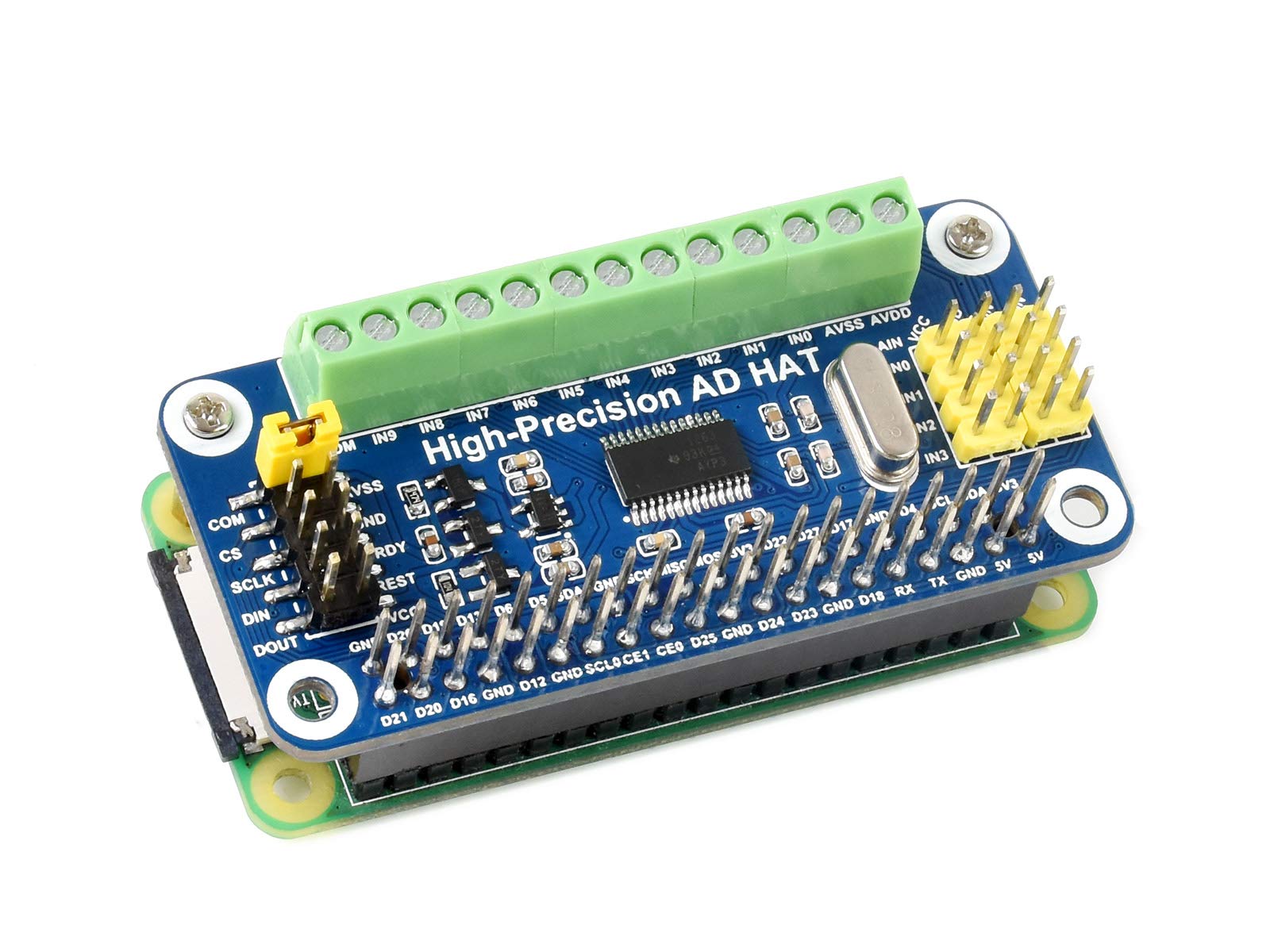

High-Precision AD HAT Compatible with Raspberry Pi 4B/3B+/3B/2B/Zero/W/Zero WH, Jetson Nano Expansion Board with ADS1263 10-CH 32-bit High Precision ADC 24-bit Auxiliary ADC

Marchio: IBest
Nome modello: High-Precision AD Hat
Tecnologia di connettività: GPIO, USB
Componenti inclusi: Carta AD ad alta precisione x1, Pacchetto viti per RPi (2PCS) x1
Sistema operativo: Linux

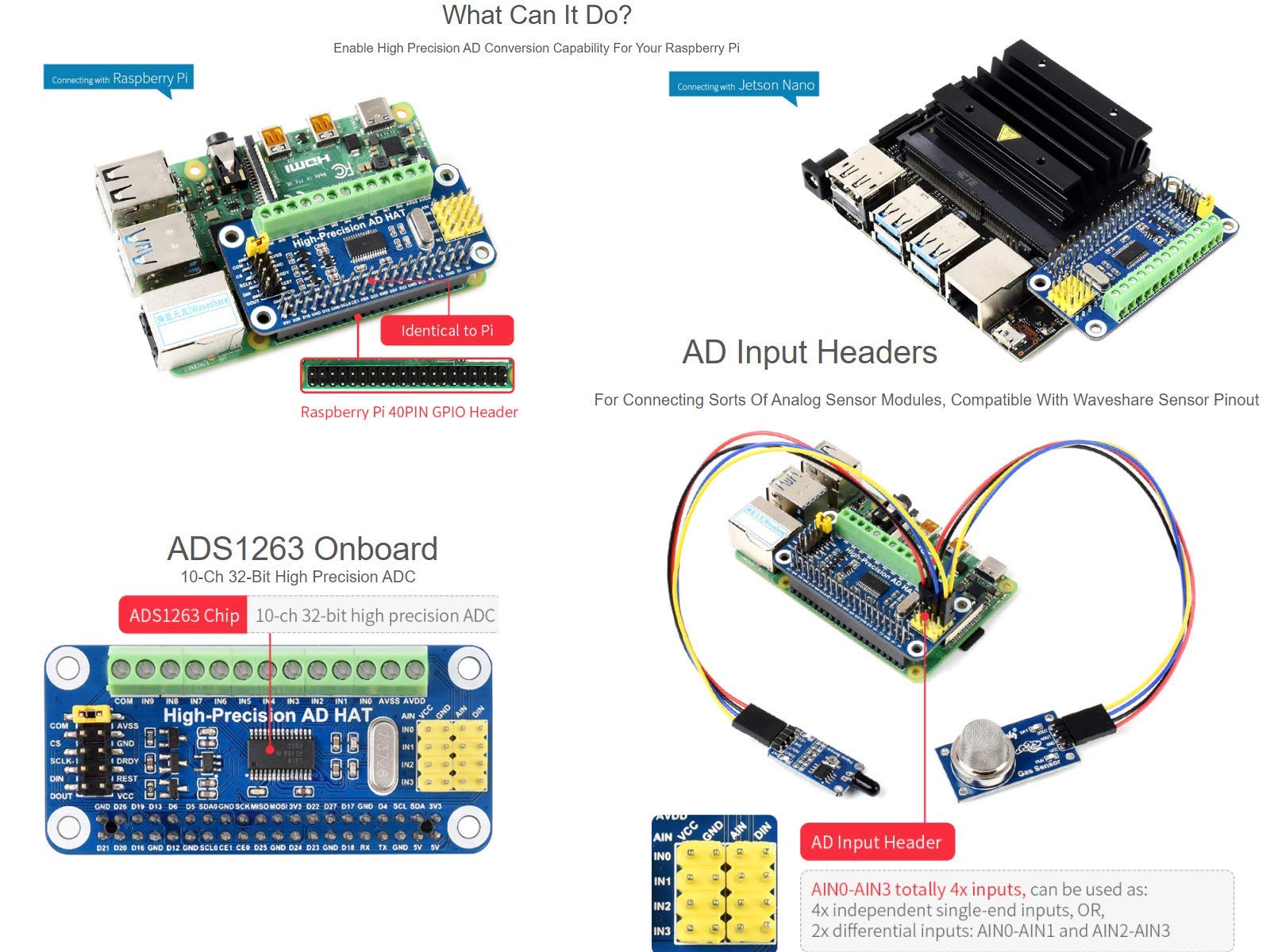

- High-Precision AD HAT For Raspberry Pi and Jetson Nano ,Adopts ADS1263 chip, low noise, low temperature drift, 10-ch 32-bit high precision ADC (5-ch differential input), 38.4kSPS Max sampling rate with embedded 24-bit auxiliary ADC, internal ADC test signal, IDAC, 2.5V internal reference voltage, 8x multiplexing GPIO, PGA (32 times Max)

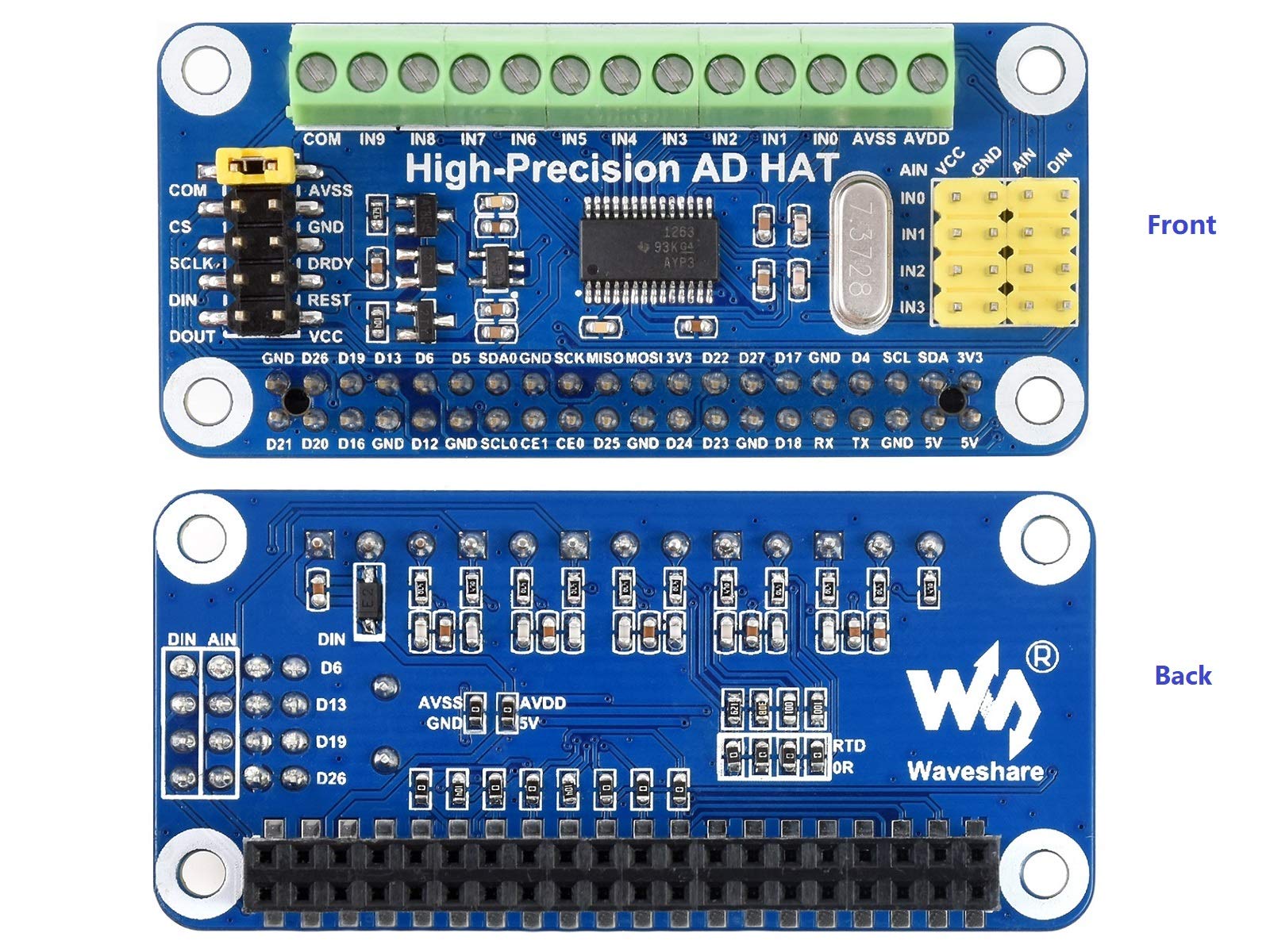

- Onboard control header, make it easy to control the module by other hosts in additional to Raspberry Pi
- Onboard AD header input, compatible with Waveshare sensor pinout, for connecting sorts of sensor modules
- Onboard AD screw terminal input, allows connecting analog signal and analog power supply, general purpose interface
- Three-wire RTD (resistor temperature detector) circuit, enabled by soldering 0R resistor
