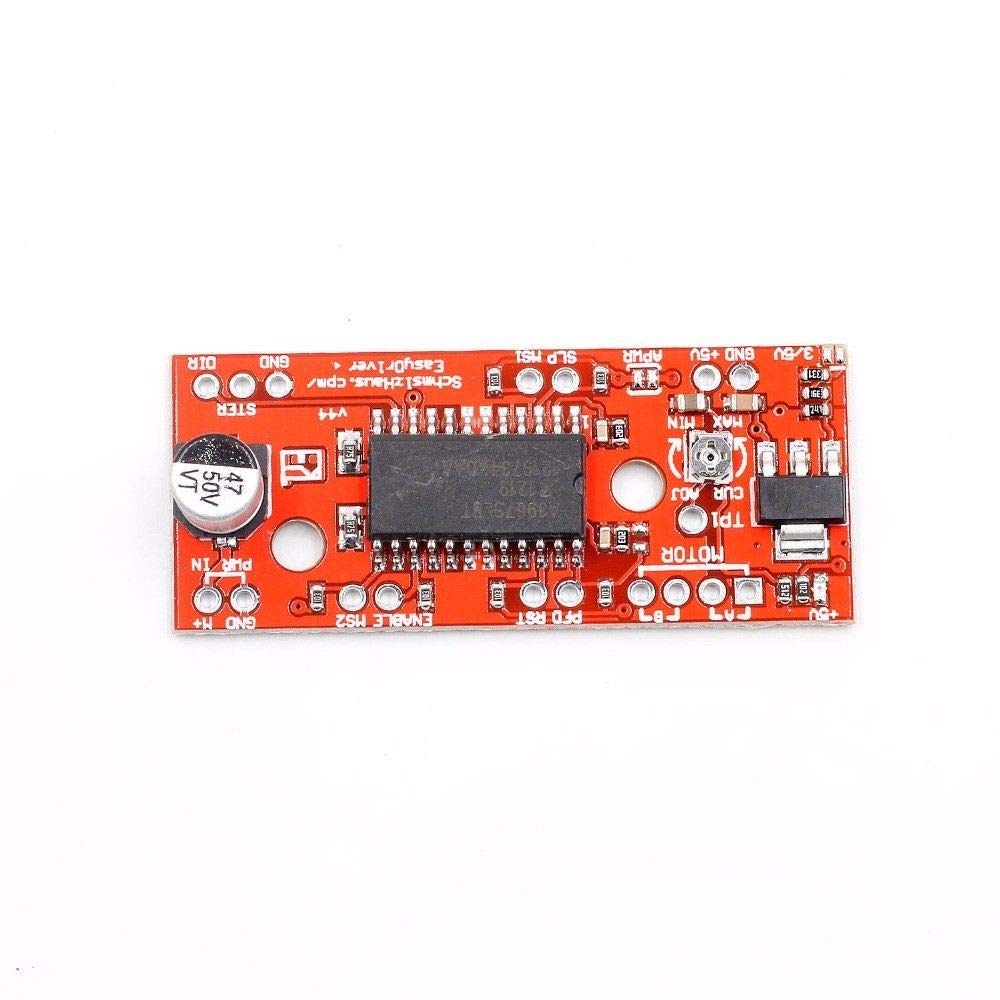

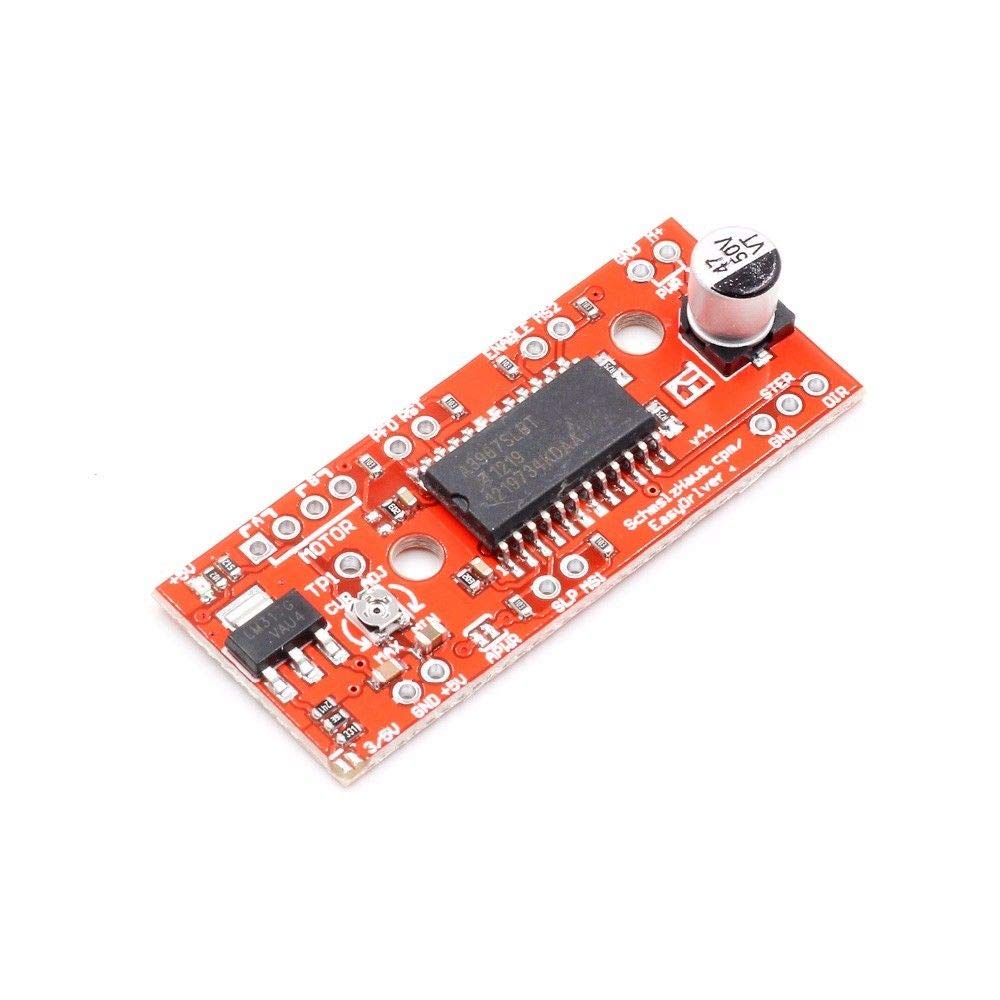

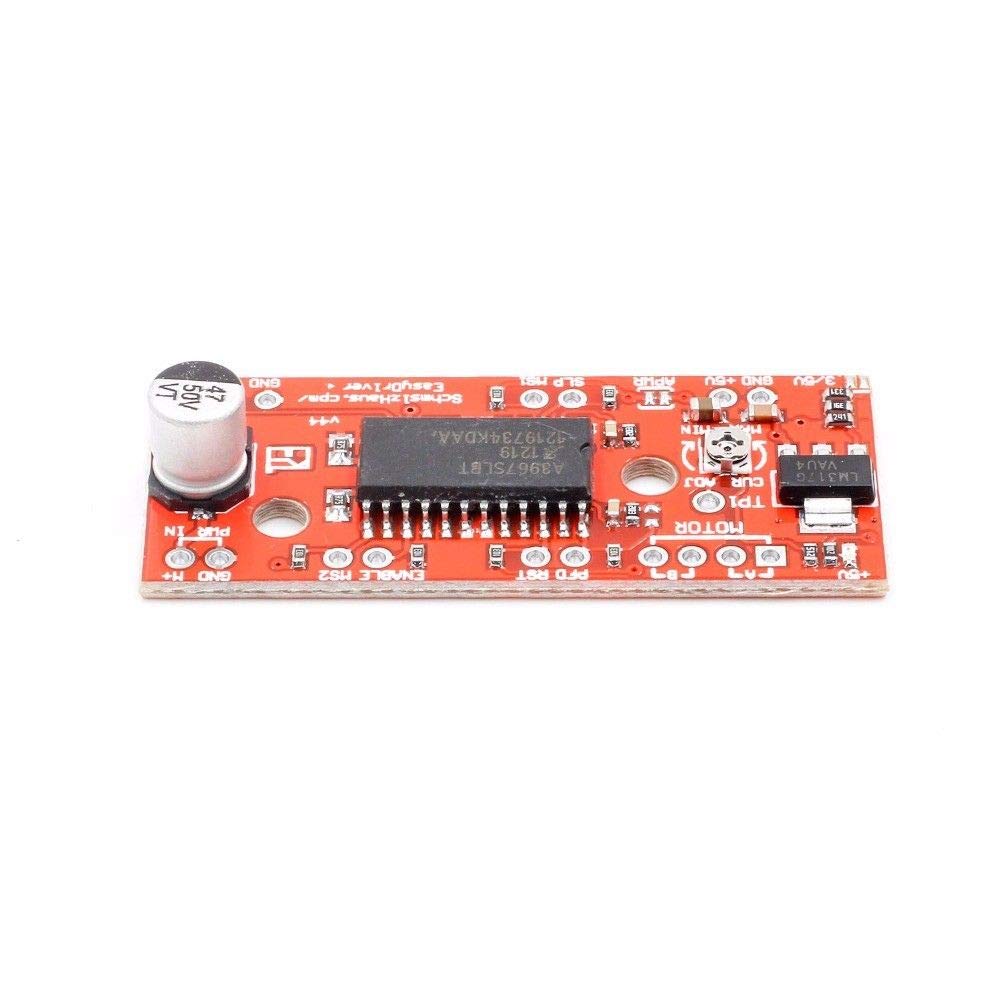

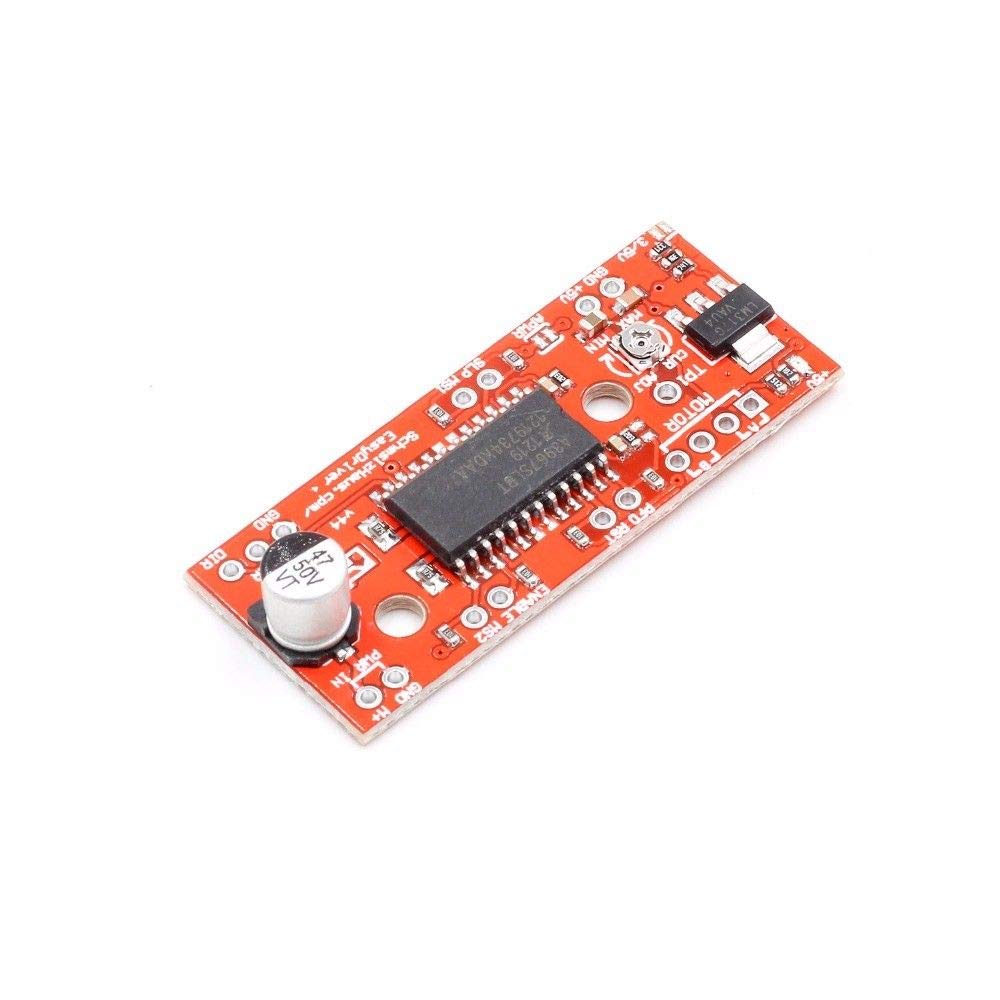

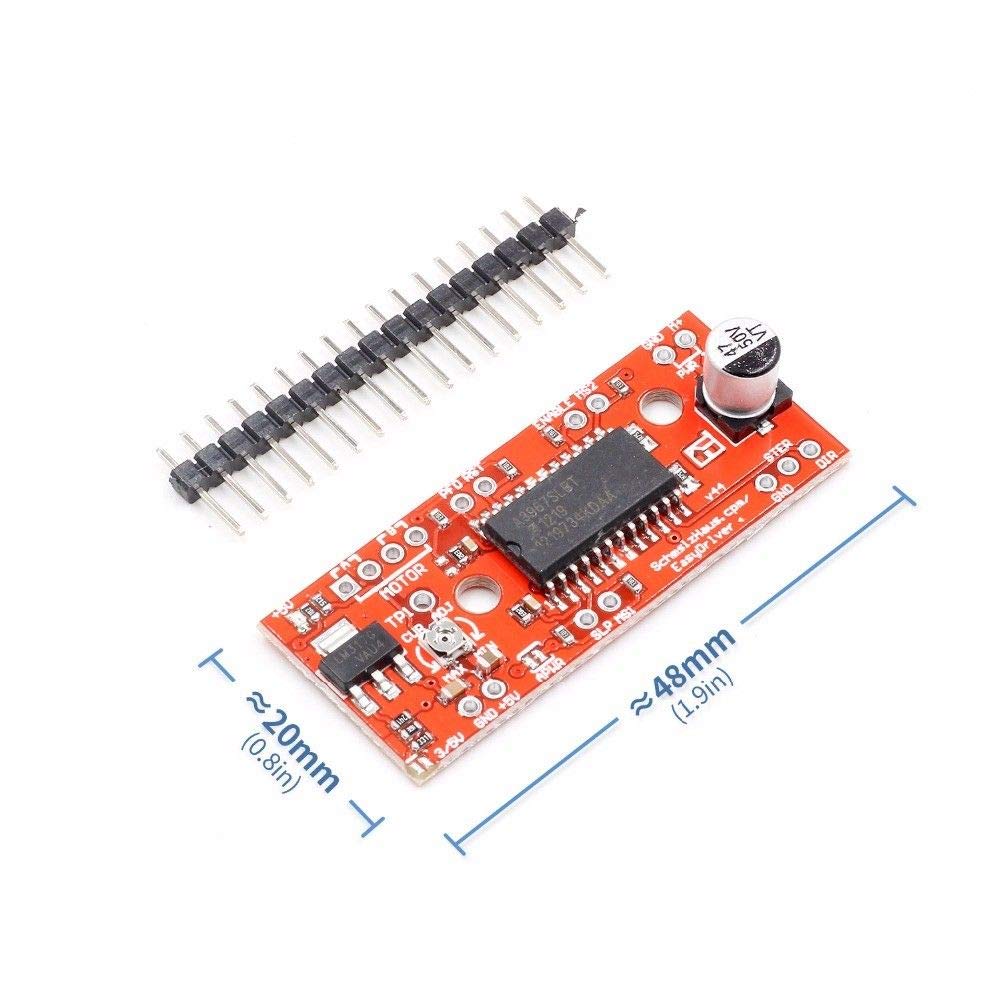

5pcs A3967 EasyDriver Stepper Motor Driver V44 Development Board

Marchio: TECNOIOT
Modello CPU: 5X86
Velocità CPU: 1 GHz
Capacità della memoria: 1 TB
Usi specifici del prodotto: 3D Printer, Arduino Development
Nome modello: A3967

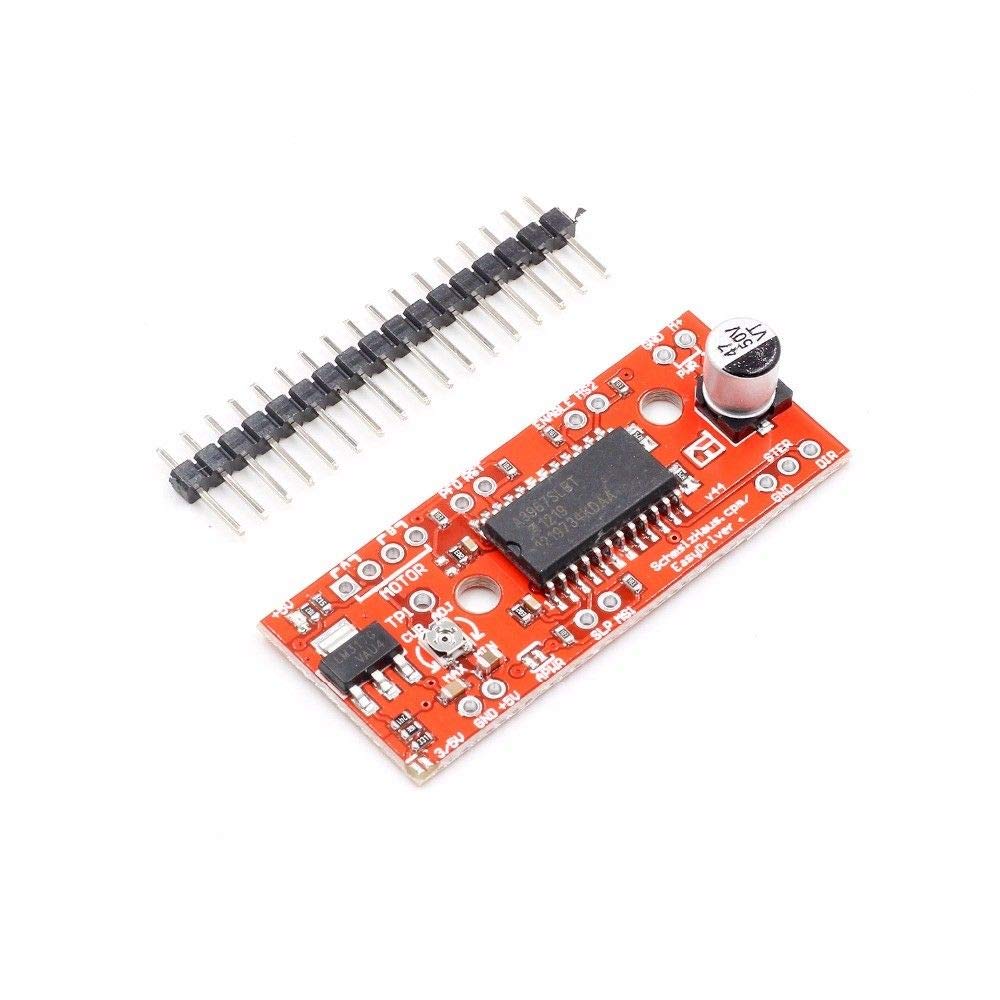

Componenti inclusi: 5 x A3967 module, 5 x Pinheads
Caratteristica speciale: Stepper Motor Driver
Produttore CPU: AMD
Tecnologia memoria RAM: DDR4

- 【A3967】 EasyDriver Stepper Motor Driver V44 for the 3D printer of the Arduino development board
- 【Easy operation】 The pitch angle of the stepper motor is generally defined with parameters or a number of steps, the general revolution of the motor is divided into 200 steps, which is the pitch angle of 1.8 degrees, the function of EasyDriver subdivision with one step, this subdivision of the driver board 8 segments, that is, each step of the engine is subdivided into 8 small steps, this can be more precise control, that is, EasyDriver at 1600 steps to complete a full rotation of 360 degrees.
- 【Easy compact design】 The EasyDriver is an easy-to-use stepper motor controller, compatible with anything that can generate a digital pulse of 0 to 5V (or a pulse of 0 to 3.3V if soldering SJ2 closed in the EasyDriver).EasyDriver requires a 7V to 30V power supply to power the motor and can power any motor voltage step by step.
- 【High performance】 The EasyDriver has a built-in voltage regulator for the digital interface that can be set to 5V or 3.3V. Connect a 4-wire stepper motor and a microcontroller and obtain precision motor control. EasyDriver manages bipolar motors. and motors wired as bipolar. That is to say. Stepper motors of 4.6 or 8 cables. In this version (v4.4) we have corrected the silk error in the minimum / maximum setting.
- 【Compatible】 Compatible with stepper motors of 4, 6 and 8 cables of any voltage. Adjustable current control of 150mA / phase to 750mA / phase. Power range from 7V to 30V. The higher the voltage, the higher the torque at high speeds.
